Impact of Activation Curvature on Transformer Stability: GELU vs. ReLU

Abstract

This study investigates the stability and performance of Gaussian Error Linear Unit (GELU) versus Rectified Linear Unit (ReLU) in a decoder-only Transformer trained on the TinyStories dataset. By subjecting both activation functions to a range of learning rates ($1e-4$, $1e-3$, $3e-3$), we empirically demonstrate that GELU exhibits significantly greater robustness at high learning rates. While both perform comparably at lower rates, ReLU suffers from gradient instability and degradation at $3e-3$, whereas GELU maintains stable convergence.

1. Methodology

1.1 Architecture

We utilize a 6-layer GPT model with the following configuration:

• Embedding Dimension ($d_{model}$): 384
• Heads: 6
• Context Window: 128 tokens
• Vocabulary: 50,304 (GPT-2 tokenizer)
• Parameters: ~10.7M

1.2 Training Configuration

• Optimizer: AdamW ($\beta_1=0.9, \beta_2=0.95$)
• Schedule: Cosine Annealing (warmup not specified)
• Iterations: 5,000 steps per run
• Seed: 1337 (Fixed for deterministic reproducibility)
• Precision: FP32 (default)

1.3 Variables

We compare nn.GELU vs nn.ReLU across three learning rate regimes:

1. Conservative: $\eta = 1e-4$
2. Aggressive: $\eta = 1e-3$
3. Extreme: $\eta = 3e-3$

2. Experimental Results

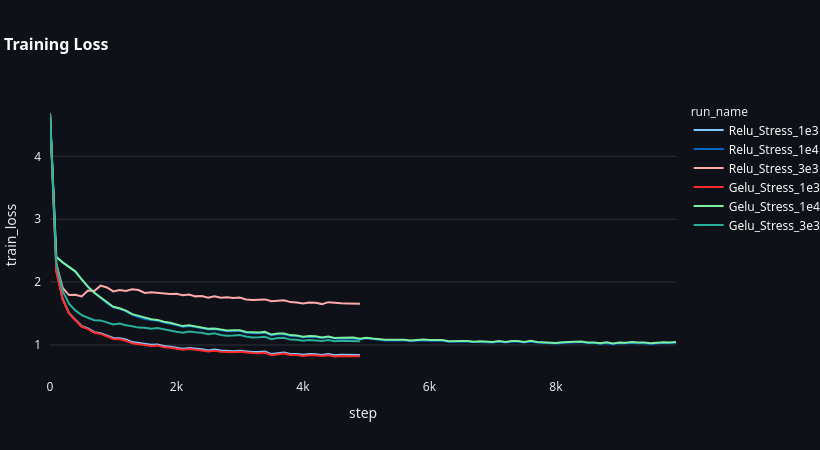

2.1 Quantitative Summary (Step 5000)

Learning Rate	Model	Val Loss	Dead %	Act Mean	Grad Norm	Status
1e-4	ReLU	1.12	59.0%	0.19	0.60	Stable
	GELU	1.13	60.5%	0.07	0.57	Stable
1e-3	ReLU	0.87	92.1%	0.08	0.32	High Sparsity
	GELU	0.85	90.4%	0.04	0.31	Optimal
3e-3	ReLU	1.68	88.8%	0.70	2.14	Unstable
	GELU	1.09	94.0%	0.16	0.29	Robust

2.2 Analysis

Regime 1: Conservative ($1e-4$)

At lower learning rates, the performance difference is negligible. ReLU actually achieved a marginally lower validation loss (1.12 vs 1.13). Both models maintain healthy activation statistics with moderate sparsity (~60%).

Regime 2: Aggressive ($1e-3$)

This appears to be the “sweet spot” for this architecture/dataset. Both models improved significantly over the $1e-4$ baseline.

• GELU outperformed ReLU (0.85 vs 0.87).

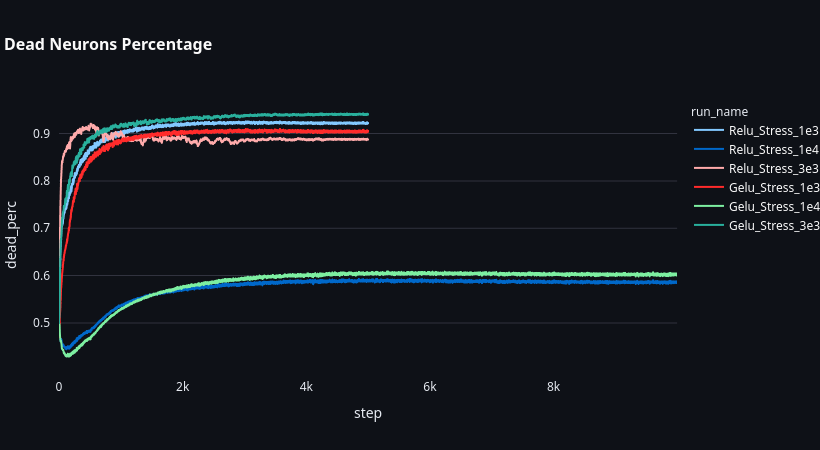

• Sparsity increased dramatically for both (>90%), suggesting the models learned a highly efficient, sparse representation of the simple TinyStories grammar.

Regime 3: Extreme ($3e-3$)

This regime reveals the critical difference in stability.

• ReLU Breakdown: The ReLU model’s validation loss degraded to 1.68.

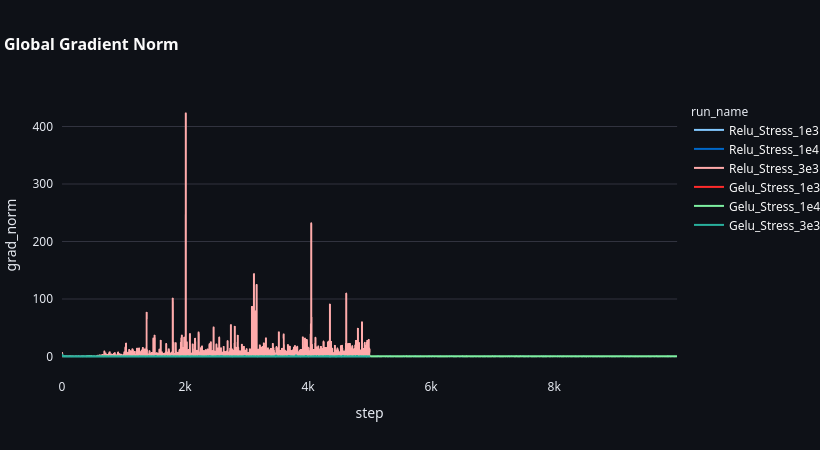

  • Gradient Explosion: The final gradient norm spiked to 2.14 (vs 0.29 for GELU), indicating instability.

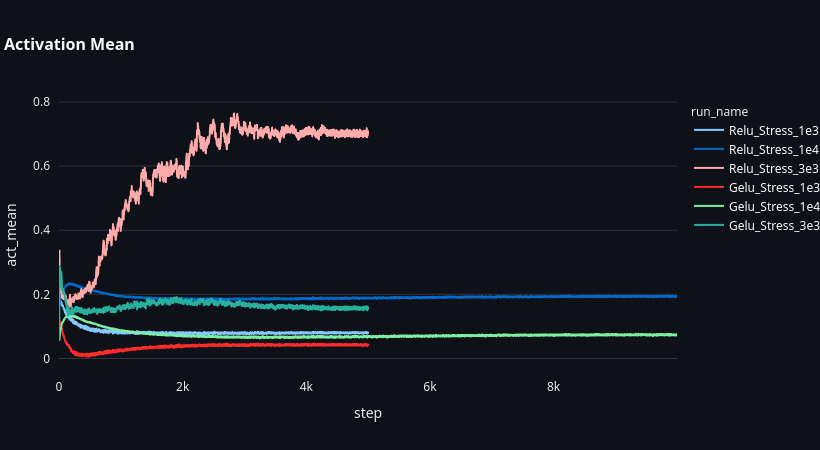

  • Activation Shift: The mean activation value jumped to 0.70, suggesting internal covariate shift.
• GELU Robustness: The GELU model remained perfectly stable (Val Loss 1.09), with a healthy gradient norm (0.29). The smooth curvature of GELU likely prevents the “sharp edge” gradient issues that destabilize ReLU at high step sizes.

3. Conclusion

GELU is superior for training stability.

While ReLU is competitive and slightly faster in conservative settings, it is brittle under aggressive optimization. GELU’s smooth manifold allows the optimizer to use larger learning rates ($3e-3$) without diverging, potentially accelerating training or allowing for larger batch sizes. For robust LLM training, GELU is the safer recommendation.

4. Code Availability

The code for these experiments is available in the experiment/relu-vs-gelu branch of the following repository:
